Measure holes / bores with ease and accuracy.

Bespoke Gauging and Fixtures, Bore Gauges, Calipers, Comparitors, Contour Tracing, Depth Gauges, Dial Indicators, Endoscopes/Borescopes, Fixture Kits, Form Testers, Gagemaker, Hardness Testers, Height Gauges, Internal Groove Calipers, Levels, Micrometers, Roundness Testers, Slip Gauge Blocks, Surface Roughness / Finish Testers, Sylvac, Trimos, Vee Blocks, Wyler.

Featured Product - British Made Bowers Bore Gauging. Analogue, Digital, Pistol Holematic, sets and individuals, our competitive prices include setting rings and UKAS certificates.

Please Contact Us to discuss your requirement.

Special Offers

Stock Promotion

Limited stock at these prices

This spreadsheet covers stock items at special prices on a first come first served basis. There are some very good savings but you need to search the spread sheet.

Examples:
Bowers MicroGauge Set bores 6.15 mm to 10.35 mm
Usual Price £1,576.50 Stock Offer £709.43 (plus vat)

Steel Gauge Block Set 47 piece grade 2
Usual Price £182.50 Stock Offer £136.88 (plus vat)

Pair of Vee Blocks 80 mm / 3.14" capacity
Usual Price £162.50 Stock Offer £73.13 (plus vat)

Trimos Mini Vertical Height Gauge 12"/300mm TVM304
Usual Price £3,098 Stock Price £1,858.80 (plus vat)
Make Enquiry - Email Mike

Bowers Group Promotion

Time limited promotion

Great offers on Bowers, Bore Gauges, Trimos Height Gauges, high quality Sylvac Swiss Calipers and Digital Indicators and more. Please enquire as we can usually beat these offer prices.

Make enquiry - Email Mike




          Bore Gauging

Hotlist Promotion

Time limited promotion

Great offers on Bowers analogue bore micrometers, Moore & Wright digital and analogue micrometers, calipers, digital internal calipers, dial indicators, height gauges, depth gauges and more. Please enquire as we can beat these offer prices.

Make Enquiry - Email Mike

Bowers SXTD M&U Sets
XT3 Digital Bore Gauge Set with Bluetooth - Metric. Set also available with an electronic display for each 3 point head. Supplied with setting rings and UKAS.

Bowers SXTH Sets
XT3 Holematic Pistol Bore Gauge Set with Bluetooth - Metric. Supplied with setting rings and UKAS.

Bowers SXTA Sets
Mechanical Analogue Bore Gauge Set available metric or imperial. Supplied with setting rings and UKAS.

Bowers Ultima High Accuracy Bore Gauge Sets with Sylvac electronic display reading to 0,0001 mm. Supplied with setting rings and UKAS.

Bowers MicroGauge 2 point split ball bore gauge sets available from 1-10 mm. Supplied with setting rings and UKAS.






XT3 Digital Bore Gauge Set with Bluetooth - Metric



For the SXTDU Sets (a display for every 3 point head) Click here
For simple, accurate bore measurement Bowers XT3 digital internal micrometers offer a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines, slots, grooves, deep-holes and many more applications are available.

Features
• New ergonomic design with larger and clearer LCD display
• IP67 electronics
• Simple 2-button operation
• 4 preset memories
• Proximity output with optional built-in Bluetooth
• Bi-directional communication
• RS-232C output
• Range 2-300mm (0.080”-12”)
• 2-6mm 2 point/ 6-300mm 3 point measurement
• Resolution 0.001mm/0.00005”
• Tungsten carbide measuring faces on all 3-point heads from 12.5mm
• Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”)
• Extensions available above 6mm for deep hole measurement
• Ratchet stop to ensure consistent measurement
• Setting rings included with individual instruments and sets
• UKAS certificates supplied as standard with all setting rings
• UKAS certificates supplied as standard with all gauges
• Serial number on all digital readouts and measuring heads
• Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
• Bore gauges manufactured according to DIN 863, part 4
• Supplied in fitted wooden case


Please deduct 5% from the prices below as we currently have a special promotion (price exclude vat)
Code No.Range (mm)Price
SXTD1M-BT  2-6
£2,607.50
SXTD3M-BT6-10
£1,099.00
SXTD4M-BT10-20
£1,319.00
SXTD5M-BT20-50
£1,799.50
SXTD6M-BT50-100
£1,994.50
SXTD7M-BT100-150
£1,670.00
SXTD8M-BT150-200
£2,299.00
SXTD9M-BT100-200
£3,656.50


XT3 Digital Bore Gauge Sets with Bluetooth (with digital readout for each head)



Bowers’ XT3 digital internal micrometers offer simple accurate bore measurement with a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines slots, grooves, deep-holes and many more applications are available

Features
• New ergonomic design with larger and clearer LCD display
• IP67 Electronics
• Simple 2-button operation
• 4 preset memories
• Proximity output with optional built-in Bluetooth
• Bi-directional communication
• RS-232C output
• Range 2-300mm (0.080”-12”)
• 2-6mm 2 point/ 6-300mm 3 point measurement
• Resolution 0.001mm/0.00005”
• Tungsten carbide measuring faces on all 3-point heads from 12.5mm
• Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”)
• Extensions available above 6mm for deep hole measurement
• Ratchet stop to ensure consistent measurement
• Setting rings included with individual instruments and sets
• UKAS certificates supplied as standard with all setting rings
• UKAS certificates supplied as standard with all gauges
• Serial number on all digital readouts and measuring heads
• Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
• Bore gauges manufactured according to DIN 863, part 4
• Supplied in fitted wooden case

Please deduct a further 5% off the offer price for a limited period (prices exclude vat).
Code No.Range (mm)NotePrice
SXTD3U-BT  6-10with 2 display units

Regular Price: £1,831.00

Special Price £1,531.00

SXTD4U-BT10-20with 3 display units

Regular Price: £2,100.50

Special Price £1,700.00

SXTD5U-BT20-50with 3 display units

Regular Price: £2,848.00

Special Price £2,248.00

SXTD6U-BT50-100with 3 display units

Regular Price: £3,364.50

Special Price £2,564.00

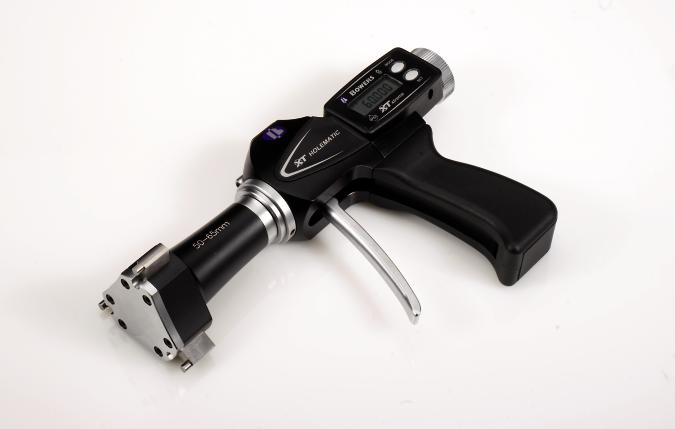

XT3 Digital Pistol Grip Bore Gauge Set with Bluetooth - Metric



Fast and accurate bore gauging. Bowers’ XT3 digital internal micrometers offer a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines, slots, grooves, deep-holes and many more applications are available.

Features
• New ergonomic design with larger and clearer LCD display
• IP67 electronics
• Simple 2-button operation
• 4 preset memories
• Proximity output with optional built-in Bluetooth
• Bi-directional communication
• RS-232C output
• Range 2-300mm (0.080”-12”)
• 2-6mm 2 point/ 6-300mm 3 point measurement
• Resolution 0.001mm/0.00005”
• Tungsten carbide measuring faces on all 3-point heads from 12.5mm
• Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”)
• Extensions available above 6mm for deep hole measurement
• Ratchet stop to ensure consistent measurement
• Setting rings included with individual instruments and sets
• UKAS certificates supplied as standard with all setting rings
• UKAS certificates supplied as standard with all gauges
• Serial number on all digital readouts and measuring heads
• Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
• Bore gauges manufactured according to DIN 863, part 4
• Supplied in fitted wooden case

Please deduct a further 5% off the special offer price for a limited period (prices exclude vat).
Code No.Range (mm)Price
SXTH1M-BT  2-6

£2,782.00


SXTH3M-BT6-10

Regular Price: £1,133.50

Special Price £900.00

SXTH4M-BT10-20

Regular Price: £1,333.00

Special Price £1,066.00

SXTH5M-BT20-50

Regular Price: £1,731.50

Special Price £1,385.00

SXTH6M-BT50-100

Regular Price: £1,931.50

Special Price £1,544.00

SXTH7M-BT100-150
£1,731.50
SXTH8M-BT150-200
£2,299.00


Analogue Bore Gauge - Sets - Metric



Rugger shop floor bore gauges. Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement. The extended mechanical travel of these advanced two or three point gauges ensures that exchanging measuring anvils is now unnecessary. Their wide application range, 2-300mm, rugged construction and easy read scale, ensure both accuracy and ease of use. XT measuring heads and setting rings are supplied with UKAS certification.

Imperial sets are also available please enquire
Features
• Range 2-300mm (0.080"-12")
• 2-6mm 2 point / 6-300mm 3 point measurement
• Graduation 2-6mm: 0.001mm, 6-300mm: 0.005mm
• Tungsten carbide measuring faces on all 3-point heads from 12.5mm
• Blind bore measurement from 2mm-6mm and above 12.5mm (0.500")
• Extensions available above 6mm for deep hole measurement
• Ratchet stop to ensure consistent measurement
• Setting rings included with individual instruments and sets
• UKAS certificates supplied as standard with all setting rings
• UKAS certificate supplied as standard with all XT mechanical micrometers
• Serial number on all gauges
• Bore gauges manufactured according to DIN 863, part 4
• Supplied in fitted case

Please deduct a further 5% (prices exclude vat).
Code No.Range (mm)Price
SXTA1M2-3
£1,017.50
SXTA2M3-6
£1,371.50
SXTA3M6-10
£439.50
SXTA4M10-20
£652.50
SXTA5M20-50

Regular Price: £1,066.00

Special Price £906.50

SXTA6M50-100

Regular Price: £1,449.00

Special Price £1,232.00

SXTA7M100-150
£1,064.00
SXTA8M150-200
£1,512.50








Ultima Bore Gauge - Sets - with Sylvac D50s Display



High accuracy bore measurement. Bowers Ultima Bore Gauge offers a choice of resolutions up to 0.0001mm. Featuring the NEW Bowers ‘FASTFIT’ measuring heads with extended measuring range (above 14mm), the Ultima boasts a simple lever operation and a constant measuring force, ensuring outstanding ease of use and repeatability under laboratory or shop-floor conditions.

Features
• UKAS certificates standard for all measuring heads and setting rings
• Measuring range 2-310mm (0.080"-12.000")
• Resolution: 0.0001mm (0.00001")
• Constant spring pressure for improved repeatability
• Good positive feel as heads self-centre in the bore
• Bowers Fastfit measuring heads for rapid changeover
• Ceramic anvils on heads above 12mm
• Blind-bore measurement standard above 12mm
• Possible to connect 2 probe holders to one single readout to measure different bore sizes at one measuring station
• The complete range of Bowers special heads is available for the Ultima (grooves, threads, splines, deep-bores etc)
• Depth stops available for all heads
• Alternative displays available on request
• Available without digital readout unit (if not required)
• Interchangeable probe option, to allow use of other manufacturers probes and displays
Code No.DescriptionRange (mm)Price
USET2With Sylvac D5OS display2-6
£3,661.00
USET3With Sylvac D5OS display6-10
£2,185.00
USET4With Sylvac D5OS display10-20
£2,724.50
USET7With Sylvac D5OS display6-20
£3,252.50
USET8With Sylvac D5OS display20-50
£3,517.00
USET9With Sylvac D5OS display50-100
£3,860.50
USET10With Sylvac D5OS display20-100
£6,749.00


Bowers MicroGauge - 2 Point Bore Gauging Large Sets 1- 6mm



Measure small bores with MicroGauge 2-point bore gauging, large sets have been designed specifically for the measurement of small bores between 1.0-6.00mm. Featuring a completely new digital readout and extremely compact overall dimensions, the MicroGauge is truly a pocket-sized instrument. Digital readout and measuring head together are about the same size and format as a ballpoint pen which represents a big advantage for those needing to measure small precision parts and who need to have their gauge with them all the time. The clear LCD display is easily set using only two buttons and results are shown with switchable 0.01/0.001/0.0005mm resolution. Data transfer is via Proximity-RS232 or Proximity-USB output. The measuring heads are equipped with spherical hard-chromed contact points and are set in appropriate setting rings. Like all Bowers bore gauging products the MicroGauge system is available as individual instruments or as full sets. All setting rings are supplied as standard with UKAS certification.

Features
• System range : 1-6mm
• New slimline digital display
• Switchable resolution 0.01/0.001/0.0005mm
• Simple 2-button operation
• Clear LCD display
• Data output : RS232 / USB proximity sensor
• Linearity : Diameter 1.0-1.5 max 2% of measuring travel, min 0.001mm.
Diameter 1.5-6 max 1% of measuring travel, min 0.001mm
• Repeatability : 0.001mm
• Available as individual instruments or sets
• UKAS-certificates as standard with all setting rings
• Hard-chromed ball-contacts
• Depth-stops available
• Stand available as an option

SMG010M  0.95-2.45 mm
£1,904.50
SMG011M1.50-4.25 mm
£1,511.50
SMG012M2.25-6.35 mm
£1,638.50





Height Gauges

Data sheets on the Trimos height gauge range - V3-V4,   V5-V6,   V7 (2D height gauge)
TRIMOS V4 HEIGHT GAUGE OFFER


Trimos multi-function height gauges measure hole diameter, position, heights, slot width and much more with ease and accuracy.
The Trimos V4 height gauges are the most popular in the Trimos range, they are extremely versatile measuring instruments and well priced, they have been developed for the most difficult workshop environments. For measuring hole diameter and position, heights, internal depths, measuring centreline position, steps etc.Manufactured entirely in Switzerland, they will guarantee a robust, precise and reliable shop floor measuring instrument. The Trimos V5 height gauge has a motorised as well as manual displacement and great accuracy.
MAKE AN ENQUIRY
For more than 40 years Trimos philosophy has been to offer easy-to-use measuring instruments that are very efficient in production environments.

The display unit provides functions that are directly accessible and depicted with symbols easy to understand.

This allows for easy and quick handling even by unqualified personnel. The large 2-line « Black Mask » display offers an exceptional contrast in all lighting conditions, a unique characteristic on the market.The V4 measuring column offers the same functions as the V3. In addition it is equipped with a second probe holder as well as with an air cushion for easy displacement on the measuring table. The programmable functions buttons of the handle allow a quick access to the functions most used.

  • Measuring height ranges 400 and 700 mm
  • Extremely easy to use
  • Electronically adjustable measuring force
  • Autonomy: 40 h (lithium-ion batteries)
  • Larger than 300 mm probes as standard
  • Vast range of accessories
  • All adjustments possible without tools
  • RS232 et USB interfaces
  • Wireless Data Transfer Option now available. Please Enquire

Technical Specifications

V4
-
400
700
Measuring range
mm (in)
407 (16)
711 (28)
Measuring range with extension
mm (in)
719 (28)
1023 (40)
Max. permissible errors
µm
5
7
Frontal squareness deviation
µm
10
15
Repeatability
µm
2 (Ø:4)
Resolution
mm
0.001
Measuring force
N
0.75 ÷ 1.5
Autonomy
h
40
Interfaces
-
USB / RS232
Air cushion
-
Yes
Code No.NotePrice
20-V4-400  With Air Cushion, without Fine Adjustment

Regular Price: £3,464.00

Special Price £2,944.00

20-V4-700With Air Cushion, without Fine Adjustment

Regular Price: £4,029.00

Special Price £3,425.00

20-V4-400RFWith Air Cushion with Fine Adjustment
£4,616.00
20-V4-700RFWith Air Cushion With Fine Adjustment
£5,133.50











Trimos Hi-Cal Motorised Digital Height Gauge

The very low measuring pressure, combined with automatic probe compensation and diameter/centreline measurement makes the Z-Cal a world class height gauge. These versions are supplied with X - Y Co-ordinate measurement as standard.

Features

  • Hi-Cal 150 + Hi-Cal 300
  • Easy to use instrument
  • Back lit display
  • Motorised probe
  • Constant measuring force
  • Change of the measuring modes: measuring of heights, internal and external diameters, centrelines
  • Data sending on A4 printer or of PC
  • Robust and reliable
  • Large range of accessories available
  • Supplied with setting master







Surface Roughness Tester - MTR110

The Surfmatic MTR110 is a pocket sized surface roughness measuring instrument ideally suited to rapid on-the-spot surface measurements. Conforms to ISO Class 3.

Usual Price in UK £1,110.50 plus vat. Currently at a Special Price of £999.00 plus vat.
Free delivery to mainland UK.

Features

Both Ra and Rz parameters in one instrument
• Pocket-size and economically priced
• Dynamic Test Display: progress of cut-off length during testing
LCD with backlight, dynamic test display: progress bar gives indication of measuring process
• Protection slide on pick-up
Auto-off after 90 seconds
• Software calibration
Large measuring range suitable for most materials
Piëzo-electric pick-up stylus for external surfaces
Li-ion rechargeable battery
• Sound signal start-test-ready
Standard conform to ISO and DIN
* Roughness parameter
Ra, RzUnits µm / µinch
* Measuring range Ra: 0.05µm - 10.0µm, Rz: 0.1µm - 50µm
* Cut-off lengths
0.25mm, 0.8mm, 2.5mm
* Evaluation length 1.25mm/4.0mm/5.0mm Filter RC analogue
* Functions Dynamic display during testing, sound signal start-test-ready, auto-off 90 seconds, backlight LCD
* Calibration
By CAL function
* For Shafts with Min. curvature of cylindrical surface 40mm diameter (V-grooved base)

* Tracing length 6mmTracing speed 1.0mm/secAccuracy <±15%
* Conforms to ISO Class 3
Pick-up stylus Piëzo-electric
* Tracer tip
Diamond, radius : 10±2.5µm, Angle: 90° (+5°or -10°)
* Vertilation
Grade 3
* Operating temperature
0°C - 40°C
* Power
3.6 V / Li-ion battery low battery indicationCharger 6V DC (rechargeable while working)
* Dimensions
110mm x 70MM x 24mm
Supplied with:
Instrument• Protection cover for tracer
• Roughness steel test plate Ra
• Charger unit
• Carrying case

Manual
INNOVATEST® certificate

Special Gauging Systems & Bespoke Gauging / Fixturing

A complete service of design, manufacture and UKAS calibration of special purpose gauges and bespoke gauges, Gauging fixtures, CMM workholding Fixtures, Assembly tooling, special fixturing and most precision tooling and machining to your requirements.

Working from your 2D drawings or by manipulating and interrogating your 3D models to abstract the data needed to produce bespoke Gauges, Gauging Fixtures, CMM workholding aids or tooling. The facility to read / write most formats including Dwg, Dxf, Vda, Acis, Pro-e, Catia 4 & 5 (including exp), Step, Iges and Unigraphics.

Including Gap, Plug, Ring, Taper, Form, Acceptance and receiver Gauges. Bespoke Gauging fixtures that incorporate simple Go / Nogo devices, dial indicators, or electronic probes for data output.

Bespoke tooling to your specification to aid CMM workholding, assembly, machining, general work holding, testing or measurement.

Special Gauging Fixtures, Bespoke CMM Workholding, Attribute Gauging

Integrated cad / cam software suite.

Screw and Spline Gauging as part of a one stop uk manufactured package for new projects.

UKAS certification with new gauges or as part of an on-going re-calibration system.

Make An Enquiry

Calibration and Asset Management Software

Manage all your inspection equipment, tooling, machine tools and just about whatever you want to put on the system. Avoid duplication, multiple systems and spreadsheets. Simplify your companies calibration and asset administration. A robust set of asset management features. Automatic asset numbering, data validation, company asset segregation, unlimited custom fields, unlimited historical event tracking, location awareness, issue and return routines, calibration, repairs, current tracking status, customized scheduling, and so much more. Contact us for more information or a demonstration

It is very different to anything that has ever been available before, with the emphasis on flexibility and security. Download Brochure

Users include BMW, GE, Rolls Royce, Medtronic, BAE Systems, Delta Airlines, Michelin, Motorola, Hamilton Sunstrand, Johnson & Johnson, Siemens, Caterpillar, Nortel Networks, Bose, Rockwell, Honeywell, Dana, London Underground, Bosch, Allied Signal, McLaren Racing, IBM, Tyco, Toyoto Cars......

Manufacturing / Non Commercial - Used by Leading companies in Aerospace, Biotechnology, Pharmaceutical for support of their processes. With the exclusive all-in-one client, there is no need to pick and choose between additional packages for core quality tracking requirements.

Calibration - Built for the widest range of needs in manufacturing and production facilities. In house, in the field, or outsourced... total tracking and flow control for calibrated and non-calibrated serialized assets.

Tooling - Manage consumables, hand tools, and high value assets from one central system. Integrates fully with the calibration processes for complete crib control.

Commercial Services - From the individual startup, to a globe-spanning Enterprise, receive an unmatched set of features that bring all of your service-related assets and activities into a centralized quality control system.

Commercial Lab - Created for labs of all sizes with room to grow. Manage unlimited customers, automate recalls, customize work flow events and results to meet individual customer demands in-house or in the field.

Preventative Maintenance - From the individual startup, to a globe-spanning Enterprise, bring all of your service-related assets and activities into a centralized quality control system. For more information or an initial phone discussion, please Enquire

Asset Management Summary

A robust set of asset management features. Automatic asset numbering, data validation, company asset segregation, unlimited custom fields, unlimited historical event tracking, location awareness, issue and return routines, calibration, repairs, current tracking status, customized scheduling, and so much more.

Read More
Read Less

Make An Enquiry



Compliance Software

BE CONFIDENT IN YOUR COMPLIANCE - Breeze through your audit and maintain your accreditation. Download Brochure

Finally, a single platform to handle all of your documents, processes and accreditations.

  • Centralize your organization's audit data
  • Ensure compliance with standards
  • Reduce audit prep time
  • Reduce risk across your organization
  • Get reports delivered right to you
  • Encourage a culture of quality and continuous improvement

Simplified Document Organisation - Simplify your organization, access, and updating of documentation within your organization to meet compliance needs.

  • Maintain up-to-date data across your organization
  • Manage compliance with role-based actions
  • Easily find the documents that you need in a central location
  • Meet Document Control requirements
  • Receive automated alerts

Create a Workflow that works - Automate just about any process in your organization

  • Increase efficiency and reduce time with automated processes
  • Gain visibility of processes including gaps and bottlenecks
  • Embrace flexibility through tools and templates
  • Run reports on active and past processes
  • Consistently manage processes across your organization

Train employees, effectively and efficiently - Track employee effectiveness and training completion so you don’t have to worry.

  • Make training easier and faster with automatic reminders
  • Assign role-based trainings across your organization
  • Gain visibility and insight into performance
  • Access real-time training data
  • Prove employee effectiveness with reports

Customized to fit your needs - Our integrations connect to your other systems to reduce duplicate data entry, remove risk, and eliminate manual steps.

  • Active Directory
  • 3rd Party Authentication
  • ERP
  • LIMS
  • Email
  • MS Office
  • Network Storage & Custom Websites
Contact us for more information or a demonstration
Read More
Read Less

Make An Enquiry

Purdue Metrology

Metrology House
11 Willow Way
Sherfield-on-Loddon
Hook
Hampshire, RG27 0DU

Tel: +44 (0)1256 881179
sales@purduemetrology.co.uk

Representing

ABERLINK - Largest UK owned manufacturer of CMMs and vision machines, including the UKs best selling CMM the Axiom too


Partners

Bowers Group (Premium Distributor) - Trimos, Sylvac
Optimax - Starrett, Vision Engineering
Tomelleri - High Quality Portable Measuring Arms
Werth - MultiSensor CMMs, TomoScope CT CMMs

Opt in to receive a quarterly product update email


© Copyright 2020 Purdue MetrologyWeb Design By Toolkit Websites
